UANVB-OCR Samurai Ruggedized Housing Kit - Pre Order

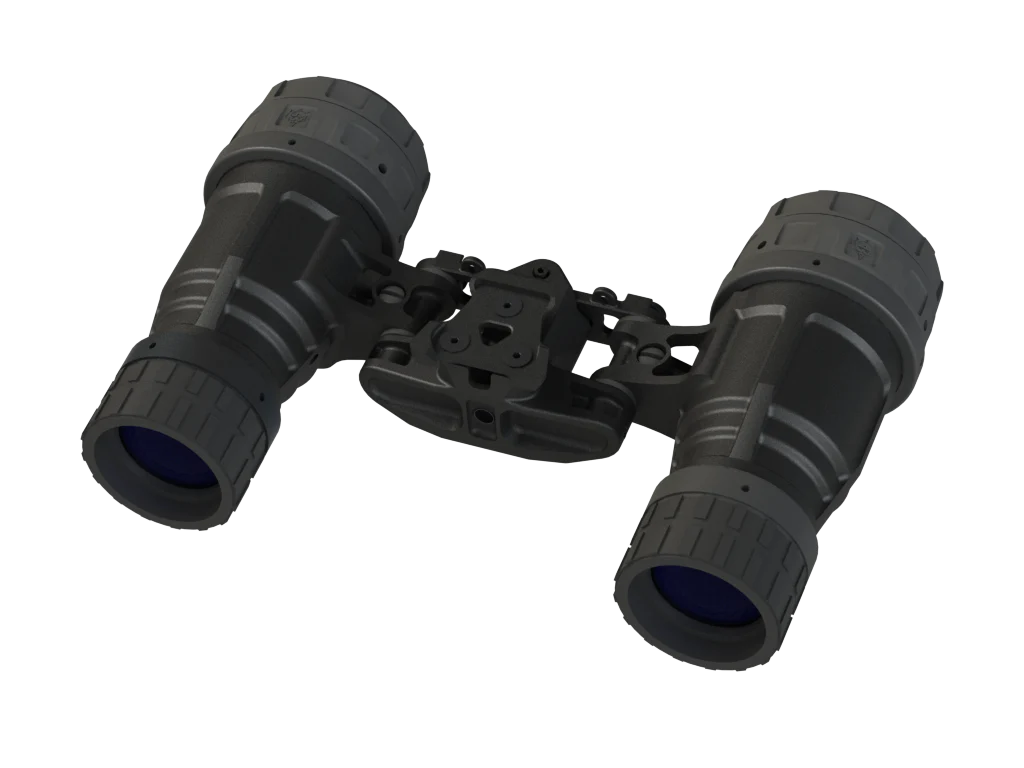

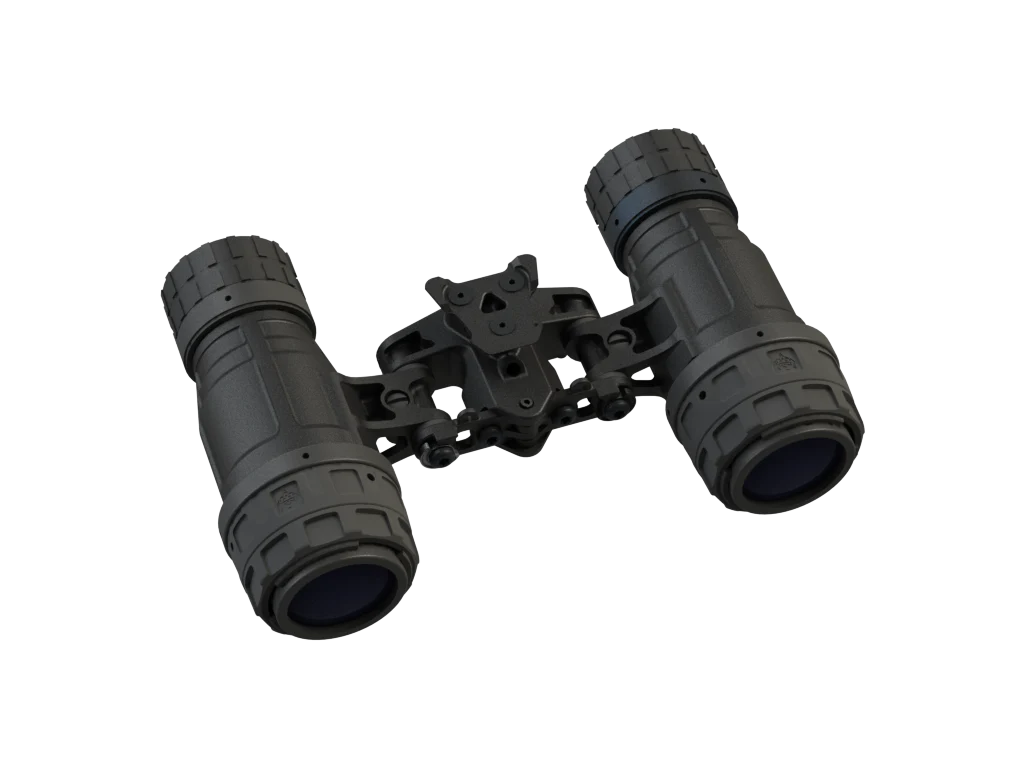

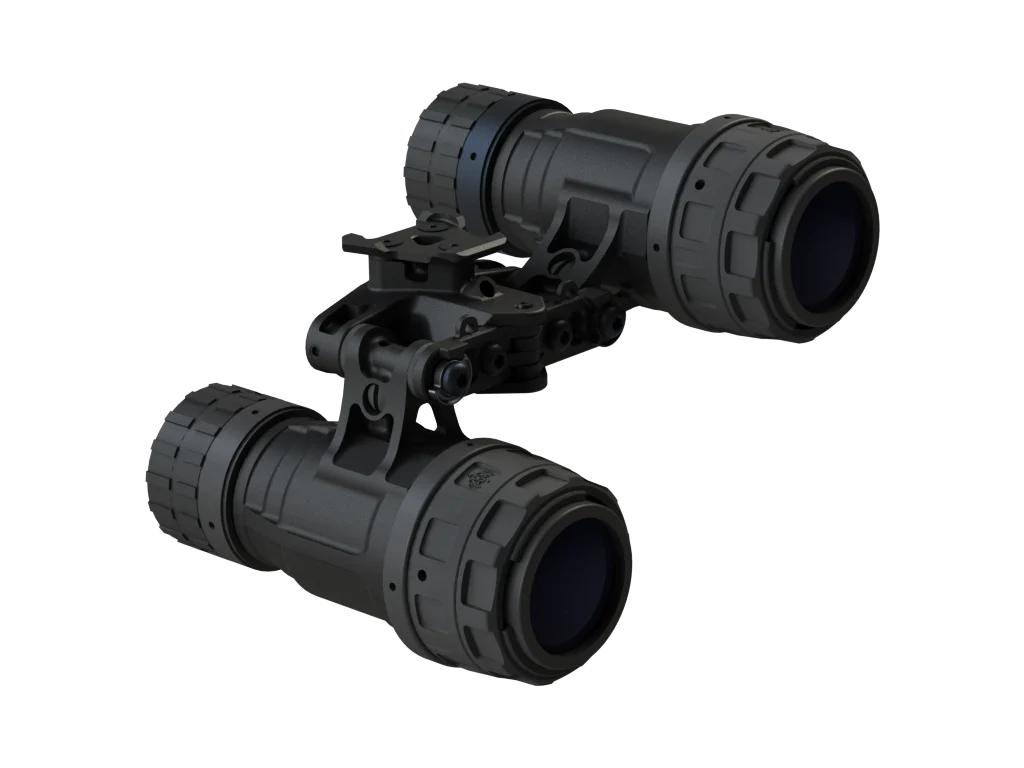

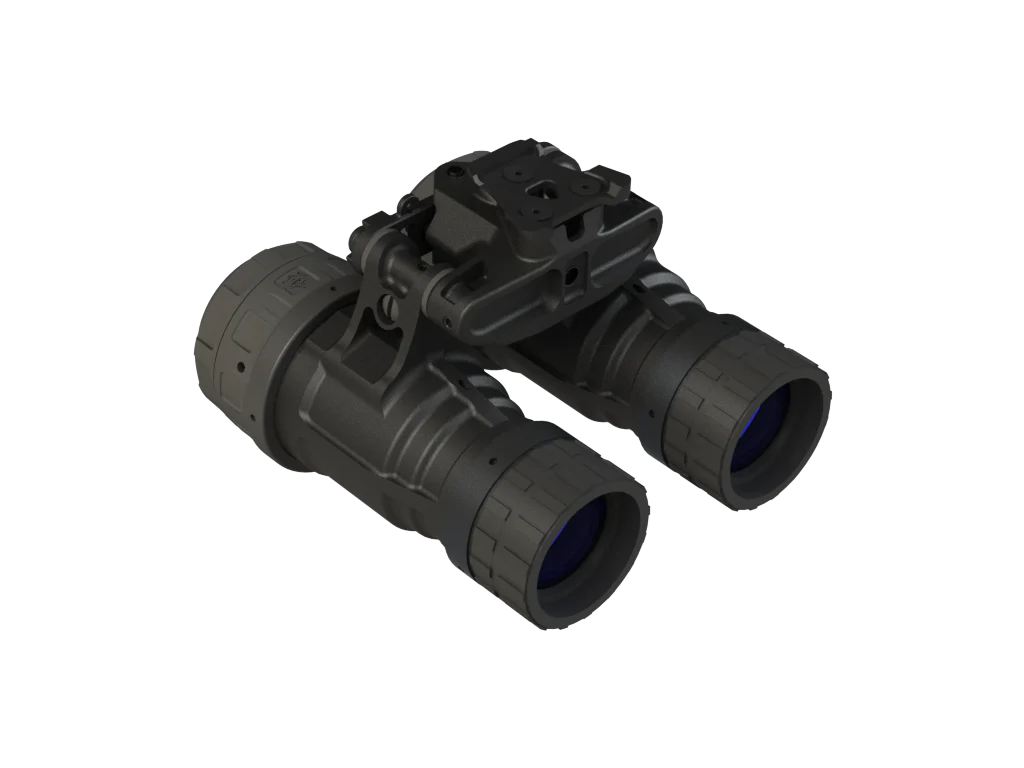

The Ultralight Articulating Night Vision Binocular Out-board Control Ruggedized (UANVB-OCR) “Samurai-Ruggedized” is a patent pending articulating binocular system made of high strength aerospace grade 7075-T6 aluminum with a full suite of out-board controls, utilized via its proprietary control pack. Using advanced multi-axis CNC machining an ultra lightweight and robust design is achieved, including an optimal single piece pod geometry. This ruggedized variant of the “Samurai” binocular lives up to its name being both ultralight and rugged. The binocular weight rivals that of the even that of even our most lightweight polymer on-board power housing options, taking into account their required batteries additional weight. The “Samurai” goggle system is a revolutionary patent pending binocular system which moves power and all user controls outboard and to the rear of the helmet system onto the control pack. Moving the controls to the rear of the helmet enables the user to maintain situational awareness at all times and maintain positive control of a weapon while adjusting settings. This system distributes weight more efficiently across the user's head allowing for extended use time with little to no neck fatigue. This system includes features such as manual gain control, individual pod stow shutoff, IPD stops, user adjustable pod tension, IR-illuminator & indicator, and low battery indicator. Several control packs are available with traditional analog controls, digital push button controls, and several power source options such as 2X CR123A, or 4X AA for continuous runtimes of 50+, or 60+ hours respectively.

Our Samurai Ruggedized housing kit can be equipped with Carson Milspec optics.

Features:

• CNC machined 7075-T6 & 6061-T6 aerospace grade aluminum, aerospace Grade 4 Titanium, impact resistant polymer control pack.
• Mil-standard Type III class II hard anodize, H-Series Cerakote
• Compatible with 3 contact pad style 18mm MX-11769 tube, 18mm MX-11769 style tube with EGAC pigtail removed, and replaced with adapter or MX-10160 tube with loss of manual gain.
• IR Illuminator
• Individual Pod on/off
• Weight of 4.76 oz. / 0.30 lbs / 135 g (housing only)
• Control Pack weight (batteries installed) AA: 6.06 oz. / 0.38 lbs / 172 g, CR123A: 4.05 oz. / 0.25 lbs / 114 g
• Power source 2x CR123A or 4x AA externally with a runtime of 50+/60+ hours
• Manual gain control with analog switch/rotary controls or digital tactile control buttons
• Exceeds IP-68, and MIL-STD-810H standards
• Lifetime repair or replacement of all housing components no questions asked. (Does not cover damages to intensifier tubes or lens assemblies)
