UANVB-OC Samurai - Pre Order

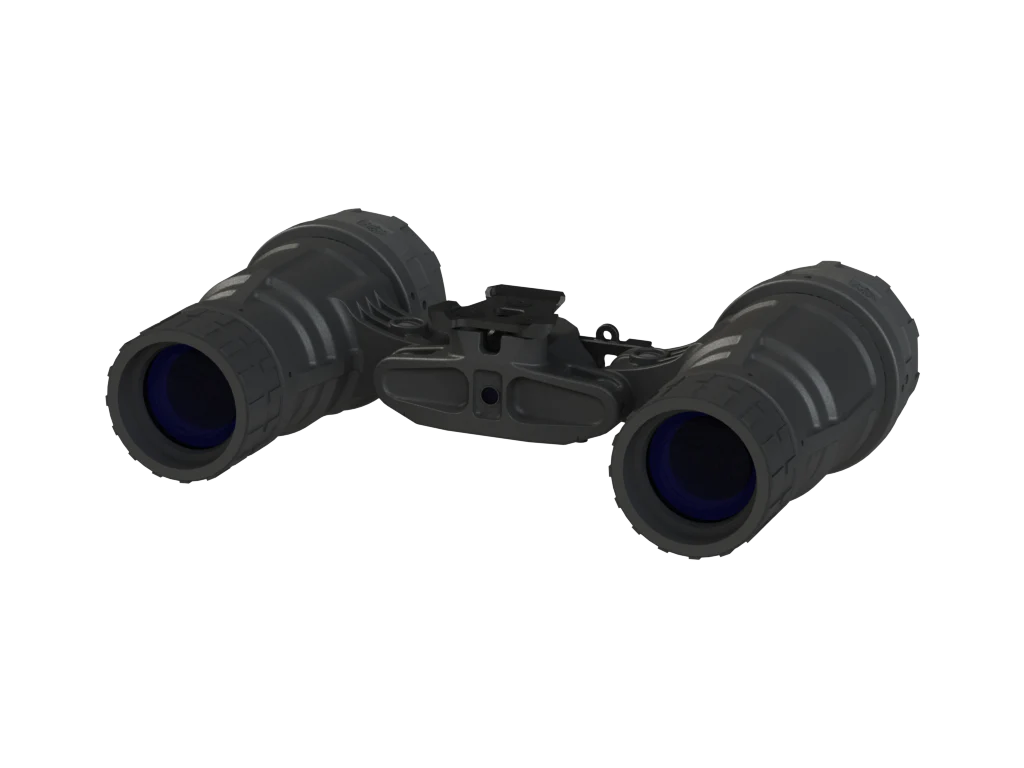

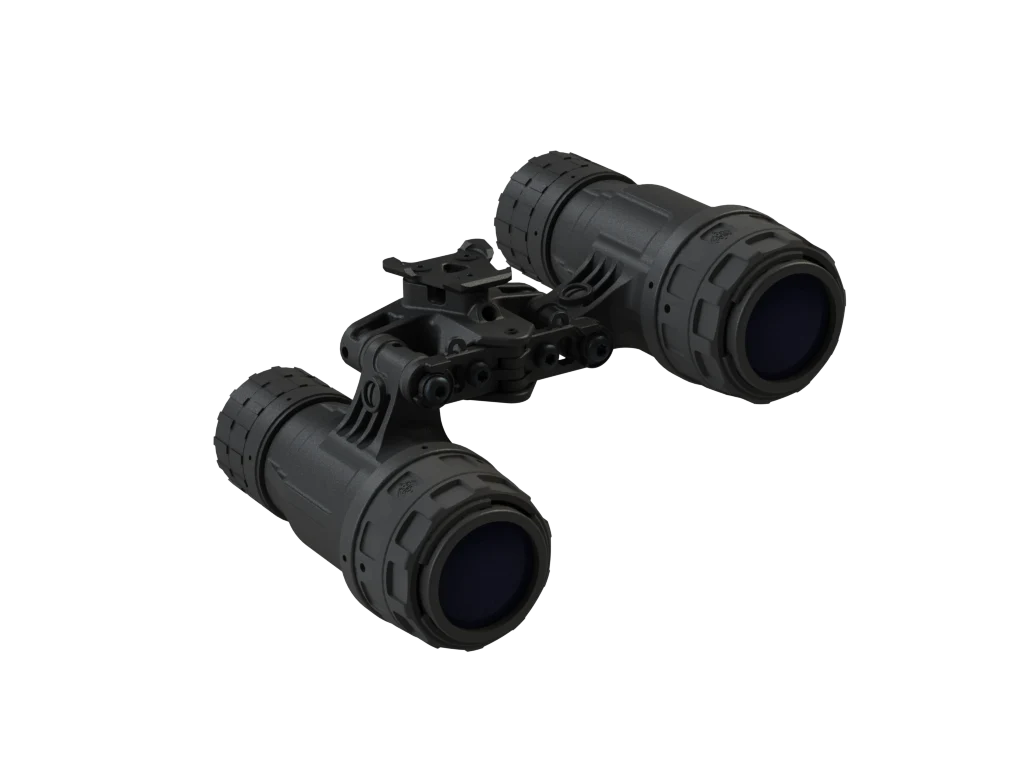

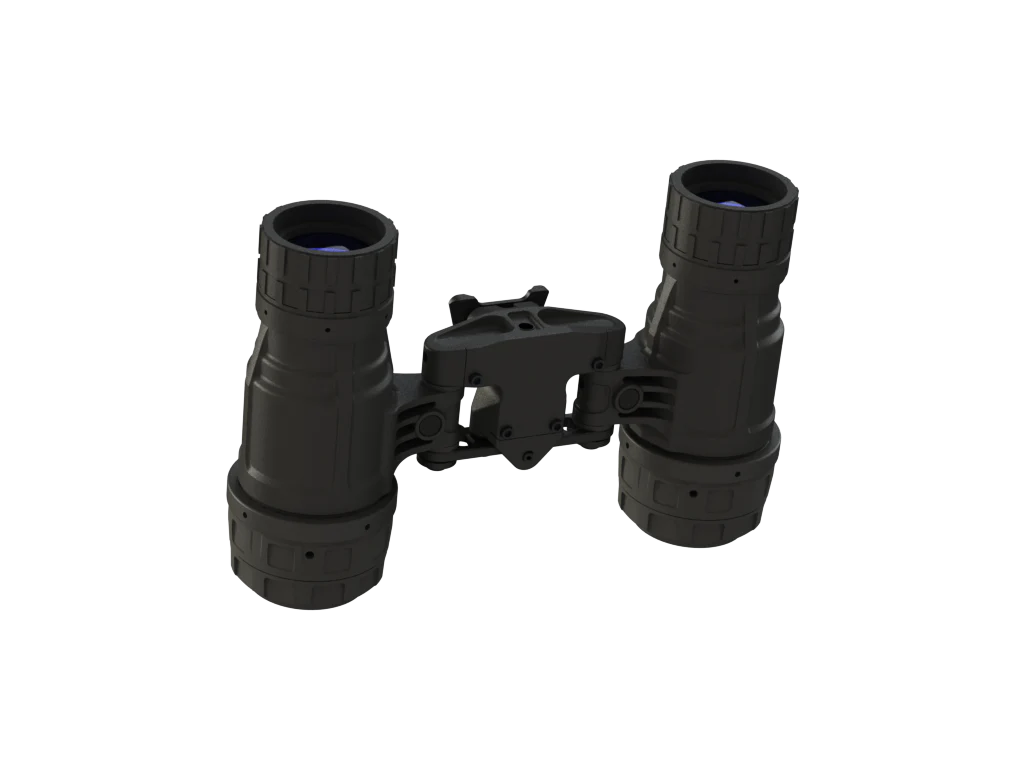

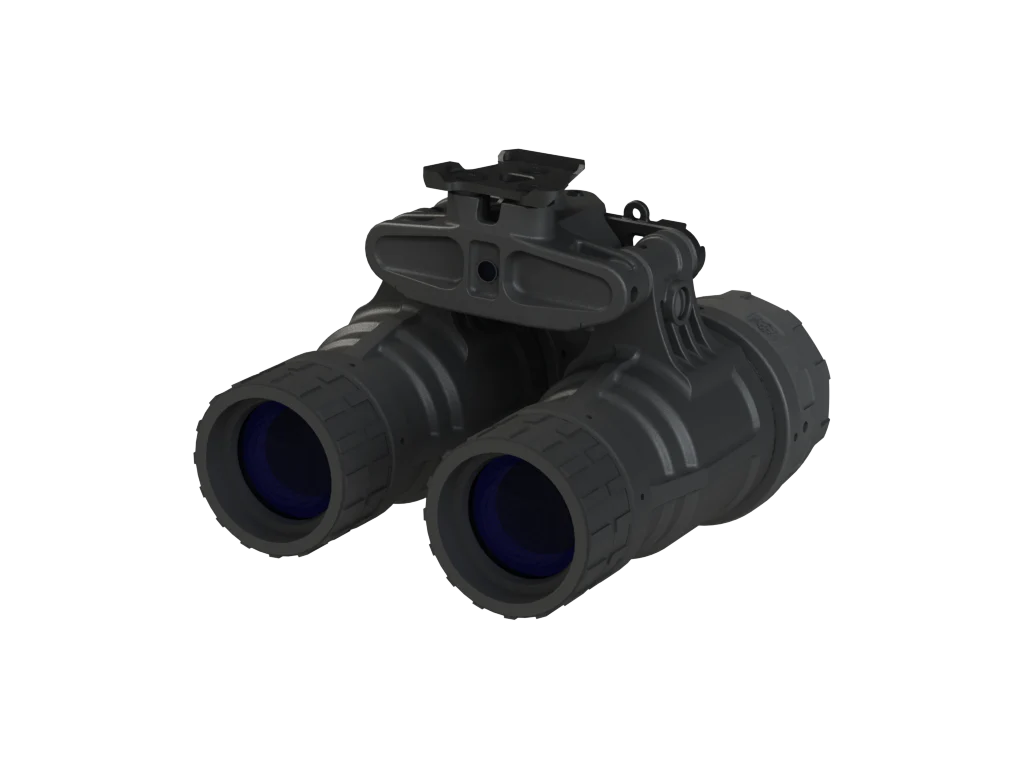

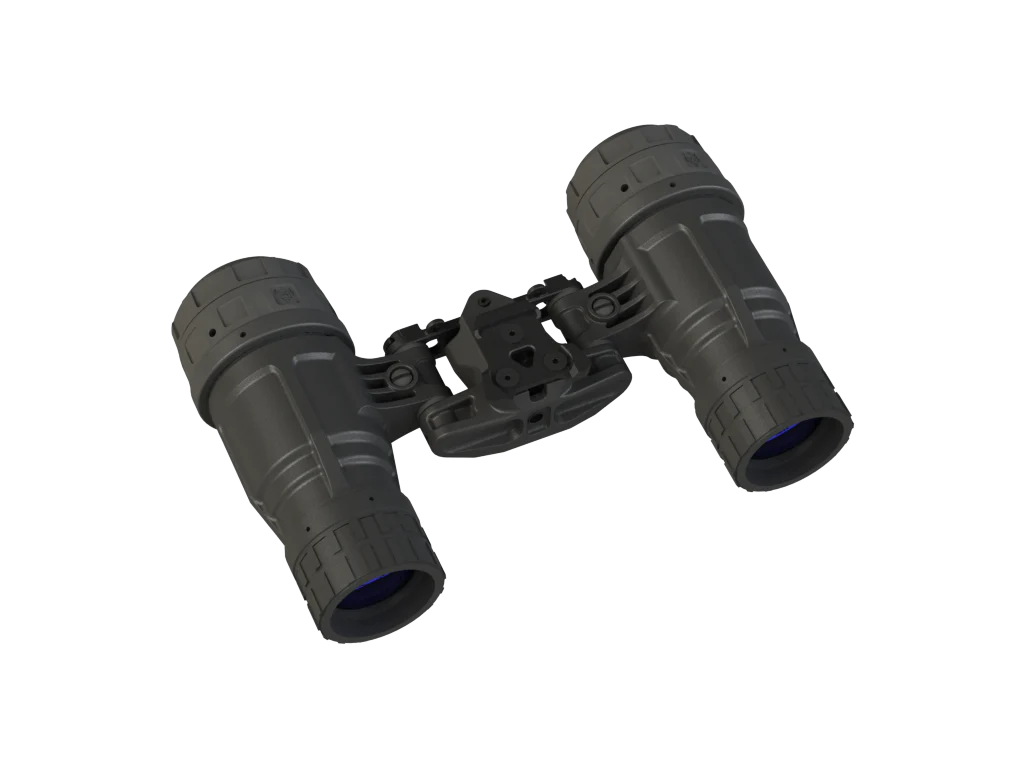

The Ultralight Articulating Night Vision Binocular Out-board Control (UANVB-OC) “Samurai” is a patient pending articulating binocular system made of high strength hybrid fiber reinforced injection molded polymer with a full suite of out-board controls, utilized via its proprietary control pack. Using cutting edge polymer and manufacturing methods an ultra lightweight and robust design is achieved, including an optimal single piece pod geometry. This variant of the “Samurai” binocular lives up to its name being the lightest weight full feature 18mm goggle on the market. The “Samurai” goggle system is a revolutionary patent pending binocular system which moves power and all user controls outboard and to the rear of the helmet system onto the control pack. Moving the controls to the rear of the helmet enables the user to maintain situational awareness at all times and maintain positive control of a weapon while adjusting settings. This system distributes weight more efficiently across the user's head allowing for extended use time with little to no neck fatigue. This system includes features such as manual gain control, individual pod stow shutoff, IPD stops, user adjustable pod tension, IR-illuminator & indicator, and low battery indicator. Several control packs are available with traditional analog controls, digital push button controls, and several power source options such as 2X CR123A, or 4X AA for continuous runtimes of 50+, or 60+ hours respectively.

Our Samurai are equipped with Carson Milspec optics and a choice of image intensifier tubes from NVT and Harder Digital. For more information on our tubes offer, head over to the "Tubes" section of our website.

Features:

• High strength hybrid fiber reinforced injection molded polymer, CNC machined 6061-T6 aerospace grade aluminum, aerospace Grade 4 Titanium.
• Mil-standard Type III class II hard anodize, H-Series Cerakote
• Compatible with 3 contact pad style 18mm MX-11769 tube, 18mm MX-11769 style tube with EGAC pigtail removed, and replaced with adapter or MX-10160 tube with loss of manual gain.
• IR Illuminator
• Individual Pod on/off
• Weight of 16,96 oz. / 1.06 lbs / 481 g (Carson optics)
• Control Pack weight (batteries installed) AA: 6.06 oz. / 0.38 lbs / 172 g, CR123A: 4.05 oz. / 0.25 lbs / 114 g
• Power source 2x CR123A or 4x AA externally with a runtime of 50+/60+ hours
• Manual gain control with analog switch/rotary controls or digital tactile control buttons
• Exceeds IP-68, and MIL-STD-810H standards
• Lifetime repair or replacement of all housing components no questions asked. (Does not cover damages to intensifier tubes or lens assemblies)
